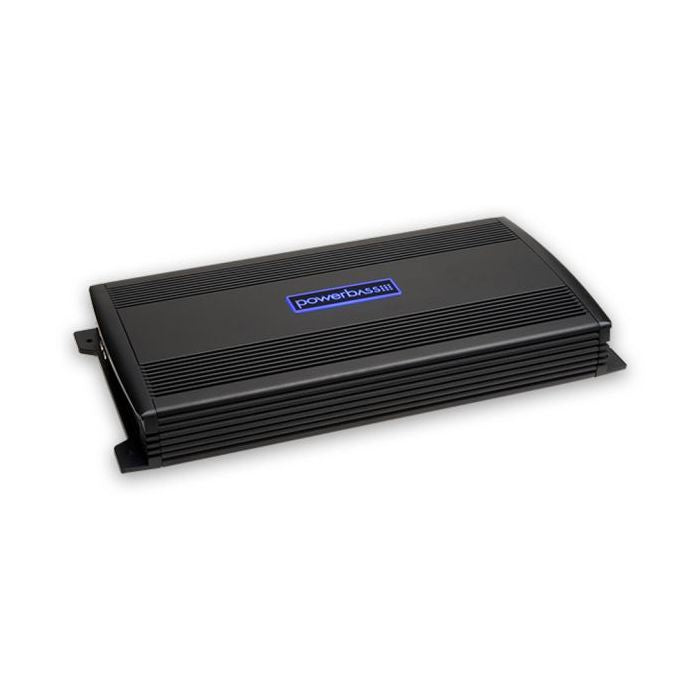

Powerbass ASA3 1000.1D - Class-D Mono Car Amplifier 1000W

• 1,000 Watt High Efficiency Class D Design
• 1-OHM Stable Mono Block Amplifier
• Double Sided Circuit Board Construction
• PWM MOSFET Power Supply
• Low Level RCA Input/Low Level RCA Pass Through Output
• Remote Soft Delay Turn On/Off Circuit
• Variable Low Pass Electronic Crossover
• Variable 12dB Bass Boost EQ
• Variable Gain Control
• Wired Secondary Remote Gain Control Included
• Internal Thermal Cooling Fan
• Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.
• Strapable Dual Amp Power Doubling Circuit (Amp-to-Amp Bridged at 2 ohm minimum)
• Switchable Logo Back Lighting

Specifications:

• Selectable Subwoofer EQ: 0-18 dB Gain @ 45Hz
• Variable Subsonic Freq: 15 Hz - 50 Hz
• Inputs: RCA Input/RCA Pass-Through Output
• Equalization Boost/Cut: 0 - 18 dB
• Subwoofer Frequency Range: 20 Hz - 150 Hz
• Power Supply: Unregulated PWM
• Height: 2.3"
• Width: 9.4"
• Depth: 15.5"
• Switchable Subwoofer EQ: N/A
• 4-ohm Mono Power: N/A
• 4-ohm Power: 400 watts x 1
• 1-ohm Mono Power: 1000 watts x 1
• 2-ohm Power: 700 watts x 1
• Subwoofer EQ Frequency: 45 Hz
• Variable Subwoofer EQ: 0 - 18 dB
• Low-Pass Crossover Freq: 50 Hz -150 Hz
• High-Pass Crossover Freq: n/a
• Peak Power: 2000 watts
• Crossover Slope: 12 dB
• Dimensions (in Inches): 15.5" x 9.4" x 2.3"
• Input Sensitivity: 0.25 V - 6.0 V
• S/N Ratio: >80 dB
• Total Harmonic Distortion: >0.5% at Rated Power
• Strapped Output Power @ 2ohms: 2000 watts x 1
• Output Power (14.4 V) @ 4 ohm: 400 watts x 1
• Output Power (14.4 V) @ 2 ohm: 700 watts x 1
• Output Power (14.4 V) @ 1 ohm: 1000 watts x 1
• Channels (mono): 1
• Frequency Response: 20 Hz - 150 Hz
